CoolHMI is economic and limited version of SCADA system developed for InteliSys, InteliGen, InteliMains and other controllers manufactured by ComAp, and Symap® controllers manufactured by Stucke Elektronik GmbH. CoolHMI is centralized unit for process control and monitoring. It allows simultaneous connection up to 8 ComAp or Symap® controllers at the same time. CoolHMI contains all essential functions and features for process control and supervision. It also allows integration of 3rd party systems like PLC into system. Detailed information about controllers and other products can be found on ComAp or Stucke Elektronik website.
Software Features
Engine monitoring up to 8 Gen-Sets
Real time Alarm and Event list
Customized control components
Charts and Trends
Multilanguage support
Embedded control logic
OEM design for system integrators
Hardware Features
IPS capacitive projective touch panel
High-speed 600MHz RISC architecture
Two electrically isolated RS232/RS485
One electrically isolated RS422
One electrically isolated Ethernet
Multiple communication protocols
IP65 front panel, IP20 back panel

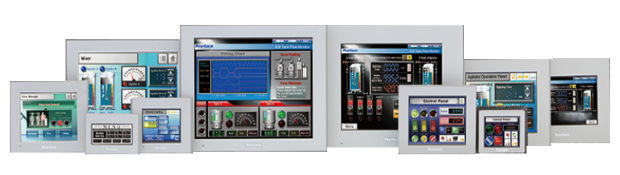

Screen size and resolution
Panel hardware is available in four sizes: CoolHMI-19" - CoolHMI-15" - CoolHMI-12" - CoolHMI-10". There is also support for InteliVision 17Touch and InteliVision 18Touch hardware.
Connection topology
CoolHMI stationcan be connected to physical layers like RS485, RS422, RS232 and Ethernet. In pictures below are examples of possible communication options.

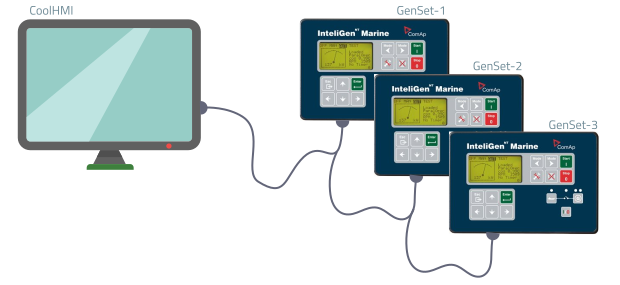

RS485 basic configuration
PC station is communicating with remote network nodes via RS485 multi-drop topology. Software layer is running Modbus RTU protocol. For detailed info about Modbus RTU please refer to datasheer of particular controller.

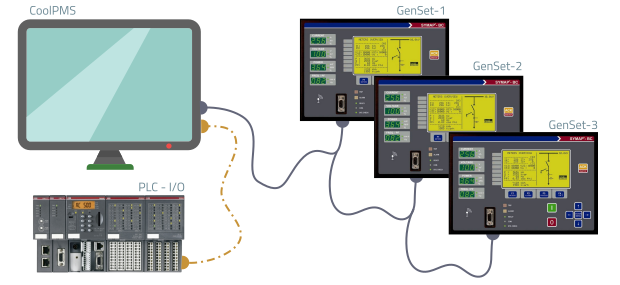

RS485 extended configuration
PC station is communicating with remote network nodes via RS485 multi-drop topology. Additional RS23 or RS485 or Ethernet TCP/IP connection to additional PLC/Alarm system could be made. Software layer is running Modbus RTU protocol. For detailed info about Modbus RTU please refer to datasheer of particular controller.

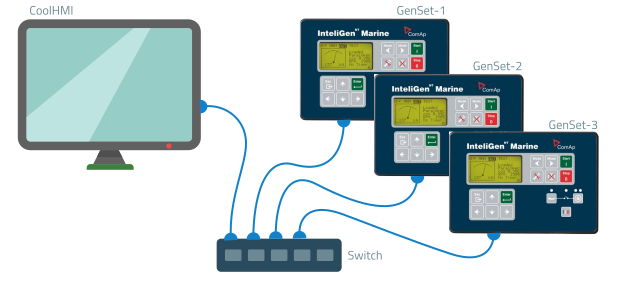

ETHERNET basic configuration
PC station is communicating with remote network nodes via Ethernet TCP/IP. Software layer is running Modbus TCP protocol. For detailed info about Modbus TCP infrastructure please refer to datasheer of particular controller.
